2-5T/H SUS304 Mango Puree Making Machine Processing Line

OVERVIEW

Mango is known as the king of tropical fruits. It is sweet, juicy and delicious, with high nutritional value. It contains a variety of vitamins, especially vitamin A. Nowadays, in order to allow people to eat mangoes in different seasons, fruit farmers will make mangoes in season into dried mangoes/mango juice/mango puree and other products. Most of them will produce mango puree, because it is easy to store and use, and mango puree can also be formulated into various mango beverages and condiments. Our company has rich experience in mango puree processing equipment.

TECHNICAL DATA SHEET

PRODUCTION PROCESSING

Concentrated mango puree:

Fresh mango after washing, sorting, destoning and peeling,pulping filtering,evaporating,sterilizing then filled into 220kg aseptic bags in drums.The end products of concentrated mango juice technical parameter is Brix 28-30%or 30-32%,PH value is 3.0-4.0.

Non-concentrated mango puree:

Fresh mango after washing,sorting,destoning and peeling,pulping filtering,homogenizing,vacuum degassing,sterilizing then illed into 220kg aseptic bags in drums.The end products of non-concentrated mango puree technical parameter is that Brix value is 14- 22%,Total acidity: 0.3-1.1%,PH:3.2-4.0,Pulp content:≥40%.

Blended mango juice:

Concentrated mango puree/juice are as raw materials,after blending with water and sugar and other additives,homogenizing and degassing,sterilizing,the end mango juice are illed into PET/glass bottles,small tin cans,tetra pak.

NFC mango juice:

Fresh mango after washing,sorting,destoning and peeling,pulping fltering,decanter centrifuge,disk separating,homogenizing, degassing,sterilizing then illed into small bottles, the iller is usually for the asepticflling.

FLOW CHART

MAIN EQUIPMENTS

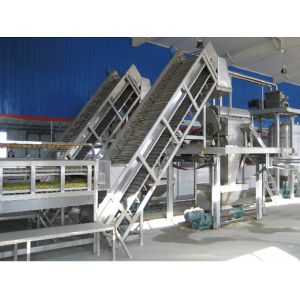

Washing Systerm

The bubble washing machine is installed with a water circulation pump and bubble generators. The materials are washed and pushed forward by rolling water. This machines perfectly imitates manual washing, which washes materials at least hurt level.

Homogenizer

The fruit suspension in the fruit puree homogenized by the homogenizer has a smaller particle size and a higher viscosity. Under the action of shearing and impact, the ketchup is thinner and tastes smoother.

The high pressure homogenizer is mainly composed of a high pressure pump and a homogeneous valve.The uniform pressure of the material is between 25-40mpa.

Tubular sterilization machine

After mixing the tomato sauce evenly, pump it into the sterilization machine for sterilization treatment, which can extend the shelf life of the product.The sterilization temperature was 55℃-105℃, sterilization time for 120 seconds.Material outlet temperature was set at 85℃, for hot filling.Due to the high viscosity of ketchup, we generally use a tube pasteurizer.

KUNSHAN YGT IMP.&EXP. CO.,LTD is a innovative, learning and technical international company.(together with Kunshan Yiyanghe Machinery Co.,ltd as manufacture). With enhanced creativity, YGT has tackled many technical problems. Built close cooperation between many food machinery manufacturer as well as outstanding packing and consumable material companies. Communication played an important role throughout the whole growth of YGT. Thanks to research and development institutions, equipment manufacturing factories and our clients, YGT won good reputation and confidence among our peers and kept upgrading and improving product performance.

YGT mainly focus on technical consulting and business service for fruit and vegetable processing equipment and packing consumable. The most optimum technology, high cost performance and superior after-sales service are specially designed for clients. Not only Africa, South-east Asia and South Africa, but also European and American clients also regard highly of YGT.

For the purpose of “creativity, learning, service”, YGT adhere to “team share , efficient cooperate, customer care ” concept, to make YGT known, familiarized and trusted by more and more people in the world.

with food processing machine and relative package two branch to provide convenient for clients demand.

-- Food Machinery Establishment and Development :

a manufacturer and supplier for fruit & vegetable processing equipment. OEM for clients custom made equipment since 2013.

We specialize in handling tropical fruits turnkey project.:

• Mango/papaya pulp production line
• Pineapple/guava juice production line
• Dilution System processing plant
• Dairy milk processing plant & machiner

Also we sell single equipment for plant assemble:

• Washing Machine & Blancher
• Crusher & Juice Extractor
• CIP&TankS(storage/blending)
• Pasteurizer/UHT sterilizer
• Aseptic filler

-- Pakcage Material Establishment and Development :

Factory was established in 2002 with the main products of aseptic bag for concentrated juice/paste, BIB and IBC bags. The company is now a leading package enterprise in China and accumulate lot long-term cooperation clients.

Main Product:
-High Standard and Alufoil Barrier aseptic bag,1-220L

-BIB bags,1-30L (aseptic,non-aseptic type)

-Kind of fitment

-Relative matched filling machine

Production:

Production in clean room (Class 100:000)

Quality Control and Innovation Environment

Certificates and Honors

ISO9000

FSSC22000

SGS

FDA Certificate
